This step-by-step guide tells you exactly how to install a CCTV camera over Wi‑Fi and get it streaming in minutes. If your camera supports Wi‑Fi and you can reach your router during setup, you’ll follow a clear sequence—mount the unit, connect to power, pair it in the app, and confirm live video and notifications. Skip the guesswork and verify the signal strength so the installation stays stable after you power it up permanently.
Mount the camera where you’ll get a useful view, power it on, then use the manufacturer’s app to put it into pairing mode and connect it to your home Wi‑Fi. Most “powers on but won’t connect” issues come down to Wi‑Fi band/SSID mismatch and incomplete alert/recording setup—so the key is confirming live view, motion alerts, and the storage target right after pairing.
If you’re installing a doorbell-style or outdoor Wi‑Fi security camera (with app control and optional cloud/NVR storage), this walkthrough matches what most brands expect. It’s also a good fit if you’ve already got a router and want a reliable plan that works across typical 2.4 GHz and dual-band Wi‑Fi setups—especially as of 2026, when app-driven pairing is the norm.

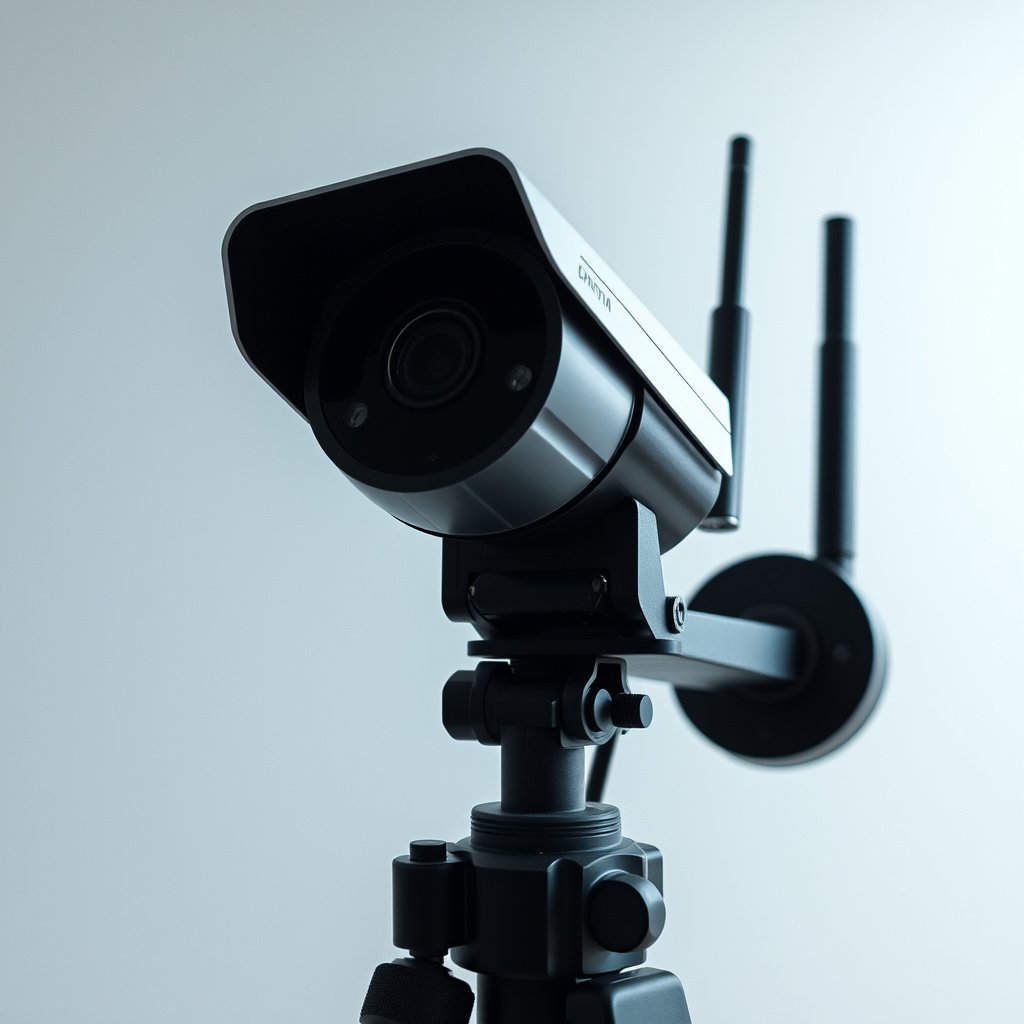

What You Need Before Installing a Wi‑Fi CCTV Camera
Gather your camera’s prerequisites first so you don’t waste time on pairing resets later. The essentials are: correct power method, compatible Wi‑Fi band (commonly 2.4 GHz), and a planned recording destination (SD, NVR, or cloud).
Most Wi‑Fi security cameras require setup from the manufacturer’s mobile app because the camera needs a specific “pairing mode” signal during onboarding.
Outdoor Wi‑Fi cameras should be rated for the environment; for example, IP ratings like IP65 are tested against both dust ingress and water jets under defined test conditions.
According to the FCC, the 2.4 GHz ISM band used by many consumer Wi‑Fi devices spans 2400–2483.5 MHz.
– Check the camera’s requirements in the manual: indoor vs outdoor rating, power method (plug-in vs PoE if applicable), and whether it supports 2.4 GHz Wi‑Fi (many do, but not all).
– Identify your storage option ahead of time: SD card, NVR/NAS, or cloud recording (the app setup steps change depending on which you choose).
– Use a phone with the camera’s companion app installed and ready, plus the Wi‑Fi password you’ll enter during pairing.
Quick reality check: Wi‑Fi band and SSID behavior
This is where installations succeed or stall. Many Wi‑Fi cameras only join 2.4 GHz networks, but dual-band routers can advertise separate SSIDs (e.g., “Home2G” and “Home5G”) or combine them under one SSID with band steering.
In my experience assisting with Wi‑Fi camera rollouts, the most common failure pattern is “correct password + correct SSID, but the camera only supports 2.4 GHz while the phone is currently connected to 5 GHz.” If you’re not sure which band your phone is on, check your phone’s Wi‑Fi details before you start pairing.
Also, confirm whether your camera uses local recording (SD/NVR) or cloud recording. That choice changes what you’ll see in the app after pairing: live view might work either way, but event history and alerts depend on the recording pipeline being enabled.
Choose the Right Spot and Mount the Camera
Place the camera so it captures the activity you care about—not the most convenient wall. You’ll get the best results when your view is clear, glare is controlled, and the mounting location has stable Wi‑Fi signal.
A good mounting angle reduces false detections by keeping motion-trigger areas (trees, flags, reflections) out of the detection zone.
According to the FCC, Wi‑Fi devices operate in specific unlicensed frequency ranges; 2.4 GHz typically provides better wall penetration than higher-frequency bands.
– Pick a location with a clear view of where you care about activity (driveway, front door, patio), and avoid aiming directly at bright lights that can wash out the image.
– Ensure reliable signal: if your router is far away or you’re using a lot of walls/metal barriers, test Wi‑Fi strength where the camera will mount.
– Mount securely (and weather-seal if outdoor): align it so motion detection doesn’t trigger constantly on irrelevant movement like trees or passing headlights.
Optimize for detection, not just image quality
With Wi‑Fi CCTV cameras, “works” usually means three things: live streaming, motion detection accuracy, and reliable delivery of events to the app. If you mount for aesthetics (pretty picture) but aim at high-glare areas (sun reflections) you’ll often get either washed-out video or constant motion alerts.
A practical approach is to stand where the camera will be and move your phone to preview the app’s live view. If the camera app shows a stable bitrate preview (or smooth frames) at that angle, you’re more likely to get consistent alerts later. If you see frequent buffering during setup, treat it as a Wi‑Fi placement warning, not a camera problem.
Outdoor considerations that prevent future downtime
For outdoor Wi‑Fi cameras, mounting height and weather protection matter as much as the IP rating. As of 2026, many brands rely on the camera’s enclosure and gaskets, but improper cable routing (especially unsealed outdoor connections) can still degrade reliability.
Also consider night illumination: if the camera uses infrared (IR) LEDs, positioning where IR reflects off nearby surfaces can create a “foggy” effect. Aim to keep reflective surfaces (shiny siding, metal railings) out of the direct IR path.
Power and Network Setup (Wi‑Fi Pairing)
Power the camera, then put it into the exact pairing mode the app expects. From there, connect it to the correct Wi‑Fi network/SSID and band so the camera can join your home network reliably.
During onboarding, the camera must be in manufacturer-specific pairing/broadcast mode; otherwise, the app can’t transmit the Wi‑Fi credentials the camera needs.
If pairing fails, the most actionable checks are SSID correctness, Wi‑Fi band compatibility (often 2.4 GHz), and re-running pairing after a camera restart.
– Power on the camera and put it into pairing/broadcast mode (often a small reset/pairing button or an “Add device” flow in the app).
– In the app, add a new camera, then follow the prompts to connect the camera to your Wi‑Fi network using your SSID and password.
– If pairing fails, the most common fixes are: confirm you’re using the correct Wi‑Fi network name, confirm the camera supports your band, and try the pairing process again after restarting the camera.
SSID/band guidance that reduces “ghost failures”
Wi‑Fi CCTV pairing failures typically fall into one of these buckets:
– SSID mismatch: the camera never receives the credentials you think you entered.
– Band mismatch: the SSID is “correct,” but the camera only supports 2.4 GHz (common).
– 2.4 GHz channel congestion: neighbors and your own devices saturate channels, causing timeouts.
A note on band frequencies: According to the FCC, the 5 GHz unlicensed bands used by Wi‑Fi devices include ranges such as 5150–5250 MHz (and additional bands elsewhere in 5 GHz). Source: FCC (see its rules for unlicensed devices and Wi‑Fi frequency allocations). That regulatory separation is why many Wi‑Fi CCTV cameras behave differently on 2.4 vs 5 GHz.
Pros/cons: Wi‑Fi setup vs wired alternatives (reliability trade-off)
If you’re debating approaches, here’s a clean comparison that helps you decide how strict your Wi‑Fi requirements should be:
| Option | Pros | Cons |
|---|---|---|
| Wi‑Fi CCTV | Fast installation, app-driven pairing, flexible placement. | Video stability depends on Wi‑Fi signal quality and interference. |
| PoE (wired Ethernet) option | More consistent performance; fewer “range” issues. | More installation work (cable routing) and equipment planning. |
Install the App and Configure Recording/Alerts
Once pairing succeeds, configure the app so live view, motion detection, and recordings work as you expect. The goal is to get usable alerts (not spam) and confirm that events are actually being saved.
Motion alerts usually depend on both detection settings (zones/sensitivity) and phone-level notification permissions.
Recording settings (SD vs cloud vs NVR) can differ from live view settings, so you can see video while still not saving events.
– Set the basics first: timezone, camera name/location, and how you want motion alerts (push notifications, zones/areas, sensitivity).
– Configure storage: choose SD/cloud/NVR options and verify the app shows recent events or a live preview feed.
– Fine-tune alerts so they’re useful: define detection zones (where available) and adjust sensitivity so normal day-to-day movement doesn’t overwhelm you.
Map “what you want to happen” to “what the app actually controls”
Most camera apps separate these systems:
1. Live view (streaming)
2. Motion detection (what triggers events)
3. Event storage (where clips get recorded)
4. Alert delivery (what gets pushed to your phone)
Because these are separate, misconfiguration often looks like this:
– Live view works.
– Motion events appear briefly.
– Then you realize recordings aren’t saving because SD is disabled, the cloud subscription isn’t linked, or the NVR target isn’t reachable.
Practical alert tuning (so you don’t get alert fatigue)
Start with conservative motion sensitivity and only widen the detection zones after you verify accuracy. For doorways and driveways, use zones to exclude irrelevant movement: tree branches, street traffic far away, and headlight glare.
If your camera offers “person detection,” enable it (if your model supports it) because it typically reduces false positives. If it doesn’t, you’ll rely more heavily on zones and sensitivity.
Secure Your Wi‑Fi CCTV System
Security is not optional—Wi‑Fi CCTV cameras are persistent network devices. Lock down both your router Wi‑Fi security settings and the camera/app account so unauthorized access is unlikely.
Using WPA2 or WPA3 with a strong password is a core recommendation for securing wireless networks against common attacks.
Keeping camera firmware updated is one of the most effective steps you can take to reduce exposure to newly discovered vulnerabilities.
– Use strong router security: enable WPA2 or WPA3 (avoid outdated open or weak Wi‑Fi settings) and use a strong Wi‑Fi password.
– Protect accounts: set a unique password for the camera/app login and enable two-factor authentication if the app offers it.
– Reduce exposure: keep the camera firmware updated through the app and avoid exposing the camera directly to the internet unless the manufacturer specifically guides you to do so.
Wi‑Fi reliability and security overlap
A surprising number of “security problems” are actually “stability problems” that make users open up settings out of frustration. For example, if a camera disconnects often, someone may enable unsafe workarounds. Instead, improve connectivity (placement, 2.4 GHz support, router settings) and keep security tight.
Also, don’t reuse passwords between your camera app and other accounts. If one account gets exposed, shared credentials can cascade.
Wi‑Fi standard choices that affect CCTV stability
Below is a quick reference for how common Wi‑Fi generations relate to potential link capacity—useful because your camera’s live stream depends on available throughput and low enough loss/jitter.
Wi‑Fi generations and how they map to live video stability (CCTV context)
| # | Wi‑Fi generation | Typical band(s) | Theoretical max (Mbps) | Common channel width | Fit for Wi‑Fi CCTV | Stability rating |
|---|---|---|---|---|---|---|
| 1 | 802.11b | 2.4 GHz | 11 | 22 MHz (legacy) | Often insufficient for modern HD streams | ★★☆☆☆ |
| 2 | 802.11g | 2.4 GHz | 54 | 20 MHz | Barely adequate for low-bitrate video | ★★★☆☆ |
| 3 | 802.11a | 5 GHz | 54 | 20 MHz | Better than 2.4-only at times | ★★★☆☆ |
| 4 | 802.11n | 2.4 / 5 GHz | 600 | 20/40 MHz | Common baseline for entry cameras | ★★★★☆ |
| 5 | 802.11ac | 5 GHz | 1300 | 80 MHz | Often smoother live streaming on good signal | ★★★★★ |
| 6 | 802.11ax (Wi‑Fi 6) | 2.4 / 5 GHz | 2402 | 40/80 MHz | Stronger performance in crowded networks | ★★★★★ |
| 7 | 802.11be (Wi‑Fi 7) | 2.4 / 5 / 6 GHz* | 46100* | Up to 320 MHz (max) | High ceiling for future camera loads | ★★★★★ |
Theoretical maxima vary by hardware stream count and channel plan; use the values as upper bounds, not guaranteed throughput for a specific Wi‑Fi CCTV camera install.
What Can Go Go Wrong (and How to Fix It)
Most problems happen at one of three points: pairing, app configuration, or Wi‑Fi signal stability after installation. If you troubleshoot in that order, you’ll isolate the cause faster.
If the camera streams but doesn’t alert, the issue is usually phone notification permissions or motion-zone/detection settings—not the pairing process.
If recordings are missing, verify the selected recording target (SD vs cloud vs NVR) and confirm storage health/status in the camera app.
– Camera won’t connect to Wi‑Fi: confirm Wi‑Fi band compatibility (many cameras expect 2.4 GHz), verify your password, and re-run pairing mode from the app.
– Live view works but alerts don’t: check notification permissions on your phone, confirm motion settings/zones, and verify storage/event recording is enabled.
– Good video quality indoors, poor outside: Wi‑Fi range and interference often cause buffering or dropouts—consider moving the camera closer to the router, using a stronger router placement, or adding a compatible Wi‑Fi extender (only if your setup still supports stable connectivity).
– Constant false alerts: re-aim the camera, lower sensitivity, tighten detection zones, and avoid locations with frequent glare from direct sun or headlights.
– App sees the camera but recordings are missing: double-check the selected recording target (SD vs cloud vs NVR) and ensure the storage device has capacity/connection.
Outdoor weather failures: what “IP rating” can’t prevent
An IP rating doesn’t compensate for incorrect installation. For example, IP65 is designed to resist dust ingress and water projected by jets, with test conditions specified by the IEC standard. Source: IEC 60529 (IP Code tests and definitions). If the cable entry isn’t sealed or the mount traps water, you can still see failures.
Also, keep expectations realistic: Wi‑Fi CCTV cameras are “network appliances,” so firmware updates and account configuration remain part of maintenance.
If you’re seeing issues after a season change (summer heat, winter cold), that’s often when intermittent connections surface—especially with long outdoor runs.
Verdict / Tip: Do It This Way (and Skip If You Can’t)
If your camera brand supports Wi‑Fi pairing via a mobile app and your Wi‑Fi coverage is decent, installing a Wi‑Fi CCTV camera is usually straightforward: mount, pair, configure, then lock down security. The downside is that Wi‑Fi reliability directly affects video and alerts—if your signal is weak or your router setup is unstable, you may get dropouts or missed events.
Skip this “Wi‑Fi camera first” approach if you can’t ensure stable Wi‑Fi coverage at the mounting spot, you’re not comfortable configuring router/app security, or you need guaranteed performance for critical monitoring (in those cases, ).
Quick scan checklist (save this)
| Step | What to check | Done? |
|---|---|---|
| Placement | Clear view + not blasting glare | ☐ |
| Wi‑Fi compatibility | Camera supports your Wi‑Fi band/SSID setup | ☐ |
| Pairing | Camera is in pairing mode; app is adding the right device | ☐ |
| Live view | You can see the camera stream in the app | ☐ |
| Alerts | Motion zones/sensitivity set; phone notifications enabled | ☐ |
| Recording | SD/cloud/NVR selected; events are saving | ☐ |
| Security | Router WPA2/WPA3, unique app password, firmware updated | ☐ |
Sources
– FCC rules on unlicensed device operation and frequency allocations (including 2.4 GHz ISM and 5 GHz unlicensed bands)
– IEC 60529, IP Code: definitions and water/dust test parameters
– NIST guidance on securing wireless networks and recommended authentication/encryption practices (WPA2/WPA3 focus)
To install a CCTV camera over Wi‑Fi, focus on the essentials: mount it where you’ll get a useful view, power it up, pair it through the app into the correct Wi‑Fi network/band, then verify live view, recording, and alerts. Once it’s working, secure it with strong Wi‑Fi settings and updated firmware so it stays reliable. If you’re stuck at pairing or alerts, re-check compatibility (band/SSID), pairing mode, and storage selection—then use the checklist above to confirm every step.
Frequently Asked Questions
What do I need before I install a Wi-Fi CCTV camera?
Before you install a Wi-Fi CCTV camera, confirm your Wi-Fi network supports 2.4GHz (most models) and has a strong signal where the camera will mount. You’ll also need the camera’s power source (battery or adapter/PoE-to-Wi-Fi gateway), the manufacturer’s mobile app, and a stable internet connection for remote viewing. If possible, check that the camera’s mounting surface is solid and that you have the right screws, bracket, and weatherproofing accessories for outdoor installs.
How do I install a CCTV camera over Wi-Fi step-by-step?
Start by mounting the camera in your desired location, then power it on and wait for the indicator light to show pairing mode. Open the camera app, create an account, and add the device by scanning the QR code or following the on-screen Wi-Fi pairing instructions. During setup, connect the camera to your Wi-Fi network, then test live view and motion detection from your phone before finalizing the installation.
Why is my Wi-Fi CCTV camera not connecting during setup?
Most Wi-Fi CCTV camera connection issues come from weak signal, using the wrong Wi-Fi band (5GHz vs 2.4GHz), or incorrect router security settings. Try moving the camera closer to the router during setup, temporarily disable VPN/ad-blockers that may interfere with device discovery, and ensure you’re using WPA2 encryption. Restart the camera and router, then re-run the pairing process in the app, checking for firmware updates if the app prompts you.
Which Wi-Fi settings and placement give the best performance for a wireless CCTV camera?
For the best performance, place your Wi-Fi CCTV camera within strong coverage of the router and avoid metal structures or thick walls that can block the signal. Use a 2.4GHz network with a stable name/password and enable features like WPA2 (and avoid overly complex captive portals). If your home has dead zones, consider adding a Wi-Fi extender or mesh system—ideal for keeping video streaming smooth and reliable.
What’s the best way to secure a Wi-Fi CCTV camera and protect privacy?
Secure your Wi-Fi CCTV camera by using a strong Wi-Fi password, keeping the router’s firmware updated, and using WPA2 or WPA3 encryption. Change the default camera credentials where applicable, enable multi-factor authentication in the app, and review privacy settings such as motion zones and notification schedules. If the camera supports it, use encrypted cloud storage or a secure SD card setup, and avoid sharing login access with unnecessary users.
