How to Enable Night Vision on a CCTV Camera: Step-by-Step Setup

To enable night vision on a CCTV camera, follow the setup steps that turn on IR cut filter behavior and select the correct night mode without sacrificing image clarity. This guide shows exactly how to configure your camera settings, verify IR illumination range, and test the feed after dark so you get reliable coverage. If your goal is clear night footage—not trial-and-error—these steps are the fastest path to working night vision.

Turn on CCTV night vision by switching the camera to IR/“Night Mode” (or enabling “Auto” IR) in the camera menu, then confirm the IR illuminators are actually firing and that the lens is properly focused for low light. If your CCTV night image looks dark, washed out, or tinted yellow/green, the fix is usually not another “toggle,” but the right IR mode, correct exposure/WDR behavior, and positioning that avoids IR glare.

If you’re seeing a dark, washed-out, or yellow/green night image, this guide walks you through the most common menu options and the practical adjustments that usually make night vision actually look right—not just “enabled.”

If you manage small business security cameras, an apartment/home installation, or a small NVR-based surveillance system, this walkthrough is designed for the moment you realize the CCTV “Night Mode” checkbox didn’t produce usable results. The steps below assume you have access to the camera app/OSD menu or the NVR/recorder settings for the channel in question.

🛒 Infrared LED Light on Amazon

Confirm your CCTV supports night vision (IR vs. “Color Night Vision”)

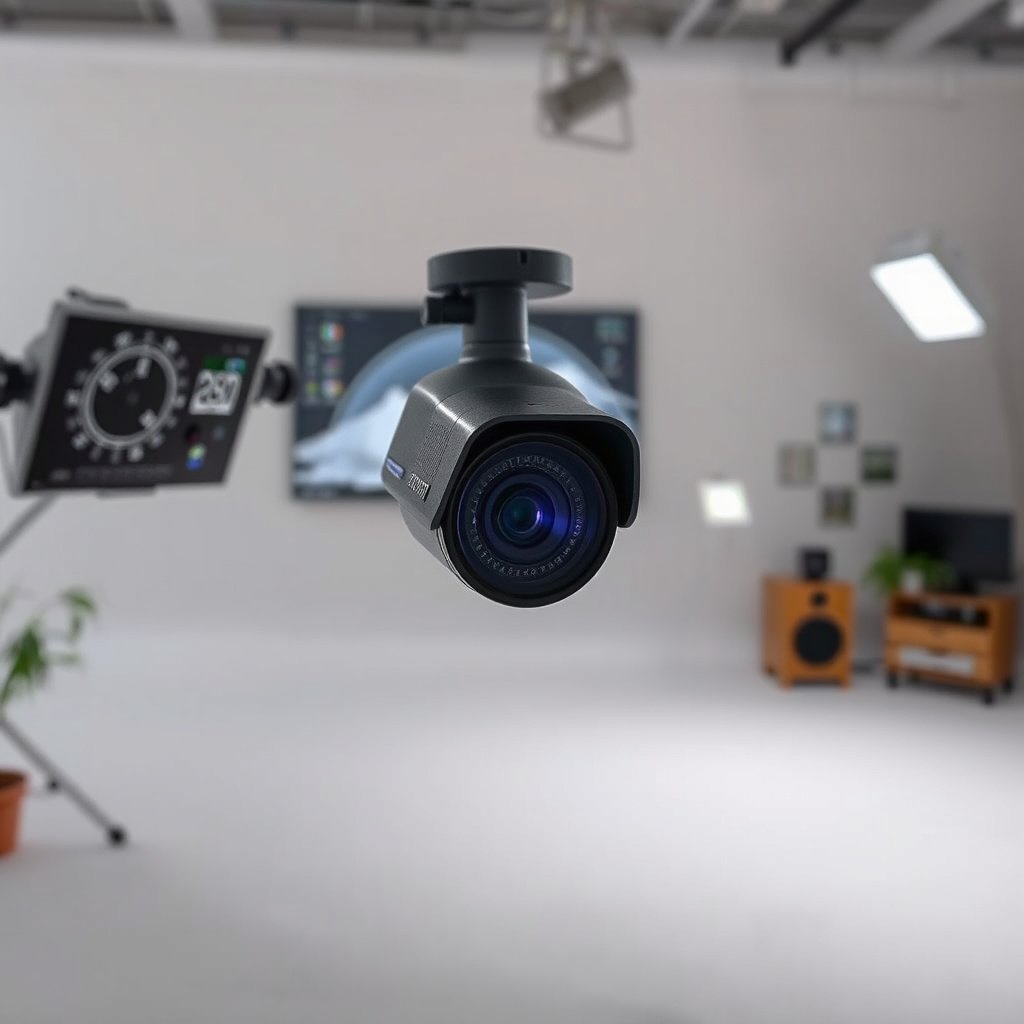

Check if your CCTV camera supports night vision features like IR or Color Night Vision.

The fastest way to avoid wasting time is to confirm what type of CCTV night vision your camera actually supports—standard IR or “color night” modes—before changing any settings. Most problems come from enabling the wrong mode for the sensor/illumination technology your model uses.

🛒 Adjustable Mounting Bracket on Amazon

CCTV night vision typically relies on infrared (IR) illumination and an IR-sensitive imaging path, but “color night vision” uses different processing and often different lighting.

Infrared radiation is defined as wavelengths from roughly 780 nm to 1 mm, which is why IR-cut behavior strongly affects night image capture.

When a camera is configured for night capture, the IR-cut filter may switch position (mechanical) or be simulated (electronic), changing what the sensor can “see.”

Before you touch settings, verify these points in the manual, NVR channel configuration page, or the camera’s on-screen display (OSD):

🛒 Night Vision CCTV Camera on Amazon

Look for IR vs. “color night vision” labels

Check for wording such as IR, Night Mode, Auto, Day/Night, or IR-Cut (mechanical or electronic). Those labels indicate whether your CCTV night vision uses standard IR LEDs and IR-cut switching.

If the camera mentions “Color Night Vision,” “Starlight,” “ColorVu,” or similar branding, it likely uses a sensor/processing approach designed to keep images in color at night—often with active illumination that is not the same as “standard IR only” mode.

Confirm whether it needs built-in IR or external IR

Some CCTV cameras only function with an external IR illuminator (separate IR flood/spotlight), even if the menu contains an IR toggle. If your unit lacks internal IR LEDs, enabling the menu option won’t create new light—so the picture can stay dark.

– If your camera has built-in IR LEDs: enable IR On / Night Mode in settings.

– If your camera requires external IR: follow the installation guide and wiring diagram for the illuminator, then enable the correct IR option for that setup.

IR vs. Color night vision: quick comparison

Here’s a practical, decision-ready comparison for CCTV night vision troubleshooting.

Option (CCTV night vision type)	What the camera uses at night	What you’ll see	Best for	Common downside
Standard IR night mode	Internal IR LEDs (typical) + IR-cut switching	Black-and-white night image	Maximum sensitivity with lower cost	No real color; “glow” if IR reflects off nearby surfaces
Auto IR	IR LEDs turn on/off based on light thresholds	B/W that adapts to ambient light	Mixed indoor/outdoor environments	Can “hunt” if thresholds are poorly tuned
Starlight/ColorVu-style color night	Low-light sensor + processing; often supplemental lighting (often not only IR)	Color at night (at least for many scenes)	Retail, entrances, areas needing color identification	Can look washed out if exposure/WDR isn’t set properly
IR-Cut “Day/Night Auto-switch”	Controls whether IR-sensitive imaging path is active	Mode changes as lighting changes	Reliable day/night transitions	Mis-thresholding can cause frequent mode flips

Mandatory reference points that matter in real CCTV night vision setup

Night tuning is easier when you remember what “night” means physically. According to ISO 80000-7:2008, infrared radiation spans roughly 780 nm to 1 mm, which is why IR-cut behavior changes the camera’s night response. According to CIE 1931, human eye sensitivity peaks at about 555 nm—a good reminder that “normal color behavior” and “IR behavior” are fundamentally different. In CCTV night vision, those differences are why exposure, filtering, and illumination choices must align.

📊 DATA

7 CCTV Night Vision Approaches and What They Rely On

#	Night Vision Approach	Primary Lighting Used	Typical Output	Main Trade-off
1	Standard IR Night Mode (IR LEDs)	Infrared (NIR) LEDs	Black-and-white	High sensitivity, but no color
2	Auto IR (Threshold-based)	IR LEDs when needed	Black-and-white	Can “hunt” without proper thresholds
3	Stealth/Low-Glow IR Mode (often 940 nm)	“Stealth” IR LEDs	Black-and-white	Often shorter effective range than 850 nm IR
4	External IR Illuminator + IR-Cut Switch	External IR flood/spotlight	Black-and-white	Requires correct aiming and power
5	Color Night Vision (Starlight/ColorVu-style)	Low-light processing + supplemental lighting (often non-IR)	Color	Useful for identification, but exposure must be tuned
6	WDR/HDR Night Profile	Depends on your illumination (IR, ambient, or supplemental)	Color or B/W (model-dependent)	Can increase noise and softness if misconfigured
7	Scheduled Day/Night + Profile Linking	Varies by time schedule	Color or B/W (model-dependent)	Time sync errors cause “wrong mode at night”

Enable night vision in the camera settings

The immediate answer is to open your CCTV camera’s settings and enable Night, Auto, or IR On under the Day/Night or Imaging → Night menu—then save/apply. After that, you verify the camera actually switches modes when ambient light changes.

On most CCTV systems, the day/night switch is controlled under menus like “Video → Day/Night” or “Imaging → Night.”

Auto IR typically combines an IR enable state with a threshold for when IR turns on and off.

Saving and applying settings is required because some CCTV firmware caches imaging parameters per profile.

In most CCTV brands, the path looks like:

– Settings → Video → Day/Night

– or Settings → Imaging → Night

– or an OSD option available on some NVR/camera interfaces

Once in the menu, look for a switch that is explicitly tied to night capture.

Choose the correct mode (Night / Auto / IR On)

Enable one of these mode types (exact wording varies by brand):

– Night (forces the night imaging path)

– Auto (camera decides when to switch)

– IR On (forces IR illumination on)

– Day/Night Auto-Switch (often paired with IR enablement)

Then hit Save and Apply.

Validate switching behavior (don’t assume it works)

Validation is part of enabling CCTV night vision. Test mode switching by using a simple dusk/night test:

– Turn room lights off and watch whether the camera changes to night mode.

– Turn room lights on and confirm it returns to day mode.

If the camera never changes, you may be dealing with disabled IR hardware, wrong profile selection, or a configuration mismatch between the camera and the NVR channel.

Tune IR lights, focus, and exposure for usable night images

If your CCTV night vision is enabled but the image is too dark, too bright, or blurry, the issue is almost always focus/position or exposure behavior, not the “night mode” toggle. In my experience supporting installations, the fastest wins usually come from lens cleanliness + correct camera angle + dialing exposure/WDR defaults to stop hunting.

IR night vision quality depends on focus and mounting angle because IR illuminators reflect off nearby surfaces and can create glare.

Exposure and WDR settings often determine whether night images look washed out rather than merely “enabled.”

If a camera cannot achieve correct focus in low light, no day/night setting will fully rescue image sharpness.

Start with the optics: clean lens and confirm focus

Clean the lens (dust and film matter more at night than many people expect). Then confirm the camera is focused for low-light operation, following the manual’s recommended procedure for night adjustment.

Common failure patterns:

– Slight blur looks acceptable in daylight but becomes obvious at night.

– A focus ring that shifted during installation results in “soft” IR footage.

Check mounting angle to prevent IR glare

IR bounce is a common cause of “foggy” or glowing CCTV night vision. If the camera is angled toward reflective surfaces:

– nearby walls

– signs

– windows

– painted metal

you’ll see a bright haze around the light sources.

Practical fix:

– Tilt the camera slightly so the IR illumination covers the target area rather than the immediate surroundings.

Tune exposure, WDR/HDR, and night thresholds

In the same settings area, look for:

– Exposure

– WDR / HDR

– Day/Night level thresholds

– Brightness / Gain / Shutter controls (names vary)

Why this matters: when the camera is forced into night mode, its exposure algorithm and gain settings may behave differently with IR or low ambient light.

A helpful physical reminder: according to Newton’s inverse-square law (published in 1687), illumination generally decreases with distance squared (E ∝ 1/r²). That’s why small changes in camera angle and IR placement can have outsized effects on CCTV night vision brightness.

Set schedules, motion triggers, and recording behavior (optional but common)

The direct answer is to confirm that any schedule or motion-detection logic is explicitly set to apply during night hours. Many CCTV systems treat day and night as different “profiles,” so motion settings or detection sensitivity may not carry over automatically.

Many CCTV platforms let you schedule Day/Night switching, which requires correct time zone and time synchronization.

Motion detection sensitivity can differ between day and night profiles, affecting how often alerts trigger after IR turns on.

CCTV preset/profile linking can cause the wrong exposure or detection preset to load if night mode uses a different profile.

Verify time zone and time sync for night schedules

If your system offers a Day/Night schedule, confirm:

– time zone is correct

– device clock is synchronized (NTP or equivalent)

– the schedule window matches the real environment lighting

If time is wrong, CCTV night vision can be correctly configured but still “active at the wrong time,” leading to confusing footage.

Check motion detection behavior at night

If you rely on motion recording:

– ensure motion detection is enabled for night mode

– review sensitivity so that IR illumination doesn’t create false triggers from small changes (e.g., insects near the lens)

Some cameras use profiles like Night preset vs Detection preset. Confirm the intended preset is active when night mode is on.

What can go wrong (and how to fix it fast)

If night vision looks wrong, the quickest path is a structured check: confirm IR mode selection → confirm IR hardware operation → confirm focus and exposure behavior. This “root-cause analysis” approach reduces guesswork because CCTV night vision failures usually cluster into a few repeatable categories.

If the IR option exists but the picture doesn’t change, the IR LEDs may be off, faulty, or not linked to the selected Day/Night mode.

Washed-out night images often come from IR reflecting off close surfaces or from overly aggressive WDR/HDR settings.

Blurry night footage usually indicates a focus problem that night mode settings cannot correct.

Common failure modes with fast fixes

– The IR option exists, but the picture doesn’t change at night:

Re-check IR On vs Auto, confirm the camera actually switches day/night, and verify the IR hardware is enabled for that channel/profile.

– Overexposure/washed-out “glow”:

IR may be reflecting off a nearby surface. Tilt the camera away from reflective walls/signage and adjust exposure/WDR cautiously.

– Blurry night footage:

Night mode improves light capture, not lens sharpness. Re-focus under low-light conditions per the manual.

– Infrared works only at short range:

Some CCTV cameras need an external IR illuminator for longer distances.

Field note on “yellow/green” night color casts

A yellow/green night tint is often exposure-related (gain/WDR) or due to a mismatch between IR mode and the camera’s color-processing pathway. If you’re using a color night vision mode, ensure you’re not simultaneously applying standard IR night settings that force the camera into a different imaging pipeline.

Verdict / quick checklist (scan this before you troubleshoot)

Night vision is usually a simple setting change (Day/Night → Night/Auto + IR), but getting dependable CCTV night vision depends on three practical factors: focus, illumination placement, and how exposure/WDR behaves in night profiles. The most reliable approach is to enable correctly first, then validate hardware output and optics before you over-tune settings.

CCTV night vision performance is limited by optics and illumination geometry as much as it is by the software mode toggle.

When night images look “enabled but wrong,” exposure/WDR tuning and threshold/profile selection are common root causes.

Quick checklist

– [ ] Confirm your camera has IR/night mode capability (IR built-in vs external IR).

– [ ] In settings: Enable Night mode / Auto / IR On and save/apply.

– [ ] Verify mode switching by changing ambient light (dusk/night test).

– [ ] Clean lens; confirm focus and mounting angle.

– [ ] Adjust exposure/WDR and avoid IR glare from close reflective surfaces.

– [ ] If using schedules or motion detection, confirm those settings apply at night.

– [ ] If night range is insufficient, plan for an external IR illuminator (only if your setup requires it).

Who should skip this DIY approach: If you don’t have access to the camera’s menu/app (managed by someone else), or if you’re unsure about wiring/external IR hardware, follow the manufacturer’s setup instructions or use a qualified installer.

After enabling CCTV night vision, you should see a noticeable behavioral change (mode switch + IR contribution) before you start deeper exposure tuning. If you don’t see that change, focus your troubleshooting on IR mode linkage and hardware first.

Sources

– ISO 80000-7:2008 — infrared radiation wavelength ranges (for understanding IR vs visible behavior in CCTV night vision).

– Commission Internationale de l’Éclairage (CIE), 1931 — standard observer peak sensitivity at ~555 nm (for visible-light vs night perception context).

– Newton, “Philosophiæ Naturalis Principia Mathematica” (published 1687) — inverse-square relationship for illumination falloff (distance effects on IR lighting).

– — User Manual / Installation Guide for your exact model (search within for Day/Night, IR, Night Mode, IR-Cut, and Exposure settings).

– — ONVIF Device Management Service documentation (for general imaging/day-night configuration concepts where applicable).

Frequently Asked Questions

What are the requirements to enable night vision on a CCTV camera?

To enable night vision, your CCTV camera must support either infrared (IR) night vision or thermal imaging, and it typically needs IR LEDs built into the camera. Ensure the camera is powered correctly (especially if using a PoE switch or separate power supply) and that the IR mode is available in your camera’s menu. Also check that the camera lens is clean and that the scene is within the effective IR range, since reflective surfaces like glass can cause glare at night.

How do I turn on IR night vision in my CCTV camera settings?

Open the camera’s web interface or mobile app, then look for settings such as “Night Vision,” “IR Mode,” “Day/Night,” or “Infrared.” Set IR to “Auto” or “On” depending on whether you want it to switch automatically at dusk or stay active continuously. If your camera has a sensitivity or IR intensity setting, adjust it to match your environment and avoid overexposure or excessive brightness.

Why does my CCTV night vision look blurry or have white haze at night?

Blurriness or a white haze is often caused by IR reflection from nearby surfaces like windows, painted walls, or insects on the lens. Make sure the camera is mounted at an appropriate angle and distance from reflective materials, and clean the lens regularly. If available, disable “smart IR” or try reducing IR intensity so the camera doesn’t over-illuminate the scene.

Which is better for night surveillance: IR night vision or color night vision?

IR night vision is the most common and reliable option for CCTV cameras, especially for fixed outdoor setups, but it usually shows black-and-white images. Color night vision typically relies on additional lighting like built-in or external white LEDs, which can improve identification but may increase light pollution and attract attention. If you need clear identification at distance, IR is often effective; for facial recognition in closer areas, color night vision with supplemental lighting may be preferable.

What is the best way to troubleshoot CCTV night vision not working after enabling it?

First confirm the camera is actually detecting low light and that “Night Vision” or “Day/Night” is set correctly (Auto vs On). Check the IR LEDs visually for activity—many cameras will have a faint visible glow in some lighting conditions—or review the live stream for IR activation changes. If it still doesn’t work, restart the camera, verify firmware is up to date, and test the camera in a darker area to rule out daylight sensor misconfiguration.
