How to Enable Motion Detection on a CCTV Camera: Step-by-Step

If you want to enable motion detection on a CCTV camera, follow these step-by-step settings changes to get reliable alerts fast. You’ll learn exactly where to turn on motion detection, how to set motion sensitivity and detection zones, and how to confirm the camera is triggering recordings. This guide delivers the practical checklist you need—no guesswork—so your CCTV actually catches movement when it matters.

Turn on motion detection by opening your camera (or NVR/app) settings, switching Motion Detection to Enabled, then tuning detection zones, sensitivity, and the record/notification actions. After that, walk through the view in real conditions and fine-tune until alerts are reliable without constant false triggers—especially outdoors where lighting changes in 2026.

This guide is for anyone setting up a wired or wireless CCTV system (standalone camera or NVR/app-based) who wants motion-triggered recording and/or notifications. If your camera model doesn’t use the exact same menu names, the steps below still map to the same settings.

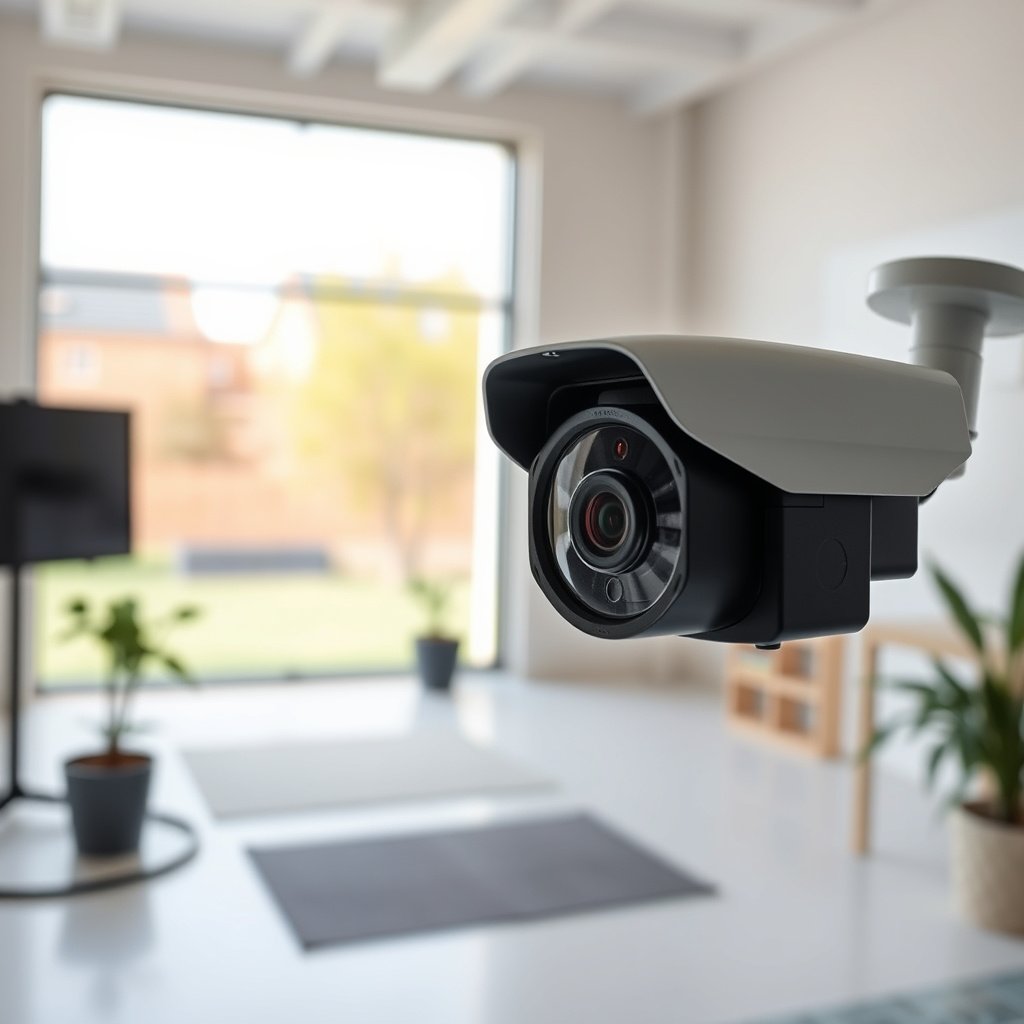

Check Your Setup (Camera vs. NVR/App)

If you want motion-triggered recording and alerts, you first need to confirm where your system actually generates “motion events”: inside the camera or inside the NVR/app. This matters because many systems let you enable detection on one device, but schedule actions (record/notify) on another.

If your system is NVR/app-based, the camera can generate motion events while the NVR/app decides whether those events trigger recording or notifications.

Standalone cameras usually combine detection and action rules in the same settings page (motion → record/alert/snapshot).

As of 2026, most IP CCTV brands support event-driven workflows where “Motion Detection” and “Event Actions” are configured separately in either the camera UI or the NVR/app.

Start by identifying what you’re configuring:

– Camera UI (standalone or direct-to-app): You’ll typically find “Motion Detection,” “Video Analytics,” or “Intrusion Detection” in the camera’s own settings, along with event actions like recording or push alerts.

– NVR / central app (multi-camera): Commonly, each camera has its own event detection options, but the NVR/app has the rule engine (motion → record/notify), plus schedules.

Also note a key practical constraint: power and connectivity stability can affect how consistently a camera encodes and reports events—especially at night with IR or at high bitrate settings. If you use PoE (Power over Ethernet), standardized power delivery helps avoid “flaky” event behavior.

According to IEEE 802.3af-2003, PoE provides up to 15.4 W at the PSE and typically up to 12.95 W at the PD (powered device).

According to IEEE 802.3at-2009, PoE+ provides up to 30 W at the PSE and typically up to 25.5 W at the PD.

According to IEEE 802.3bt-2018, 4-pair PoE can go up to 90 W at the PSE and typically up to 71.3 W at the PD (Type 4).

Enable Motion Detection in the Settings

You enable motion detection by switching the feature On/Enabled in your camera settings (or in the NVR/app’s analytics/event page), then confirming what that motion event will do. The highest-leverage step is mapping motion to the right action: recording, snapshots, and/or notifications.

Most CCTV systems separate “detect motion” from “what to do when motion happens,” so you must configure both the detector and the event action.

Turning on Motion Detection without enabling the corresponding “record/event rule” often produces alerts but no motion clips.

In many IP camera UIs, “Motion Detection,” “Video Analytics,” and “Intrusion Detection” are different pipelines that can trigger different event types (e.g., Motion vs Intrusion).

Now follow the same logic regardless of brand:

Open the correct settings page

– Standalone camera: Look for Settings → Video/Camera → Motion Detection (or Video Analytics).

– NVR/app: Look for Event or Analytics → Video Source (camera) → Motion Detection / Video Analytics.

Turn Motion Detection to Enabled

Switch Motion Detection to On/Enabled. If you see options like:

– Motion Detection

– Intrusion Detection

– Video Analytics

choose the one that matches your hardware’s event capabilities. If your camera has “Intrusion,” it may be more selective than basic motion, but it depends on supported models/firmware.

Choose the action: record, alert, snapshot, or output

Most systems give you a set of actions such as:

– Record: write a clip to the NVR/NAS or local SD card.

– Notification/Alert: push notification (app), email, or platform webhook.

– Snapshot: capture still frames.

– Output/Trigger: activate an output relay or alarm interface (if supported).

Be deliberate: you can often enable alerts without enabling recording, or vice versa. For businesses and compliance-oriented monitoring, recording behavior must be explicit.

Align with 2026 operational reality

As of 2026, many installers also set:

– Day/Night modes (so detection is tuned separately for IR vs visible light),

– Bandwidth-aware settings (so motion-triggered bitrate doesn’t overwhelm the network).

If your system supports it, confirm you are using the correct stream for analytics (often the “main” stream, not the “sub” stream).

Set Detection Zones and Sensitivity

You get reliable motion alerts by limiting where motion is measured and by tuning the trigger threshold so normal movement is ignored. Zones (also called masks, privacy masks, or detection areas) prevent false triggers from traffic, wind-blown foliage, and indoor background changes.

Detection zones (masks) tell the camera which pixels to evaluate for motion, which is the most effective way to reduce false alarms in busy scenes.

Sensitivity and threshold control how many pixel changes are required before the camera generates a motion event.

Outdoor motion detection often fails without zone masking because glare, shadows, and moving plants constantly change pixel patterns.

Configure detection areas (masks/zones)

Create zones around what matters:

– Walkways, doors, gates, loading bays

– Drive lanes only if you truly need vehicle motion

– Exclude: roads, sidewalks, tree lines, reflective surfaces, bright signs

Practical zone advice:

– Keep zones tighter than you think—motion detection typically works better when the camera only evaluates a small, relevant area.

– If you can define multiple zones, prioritize the “alarm-critical” area first (e.g., entry door).

Tune sensitivity/threshold and motion duration

Then adjust:

– Sensitivity/Threshold: Lower values usually reduce false alerts; higher values increase detection.

– Motion Duration / Trigger timing: Many cameras trigger an event only after motion persists for a minimum time (often called dwell time).

A good tuning pattern:

1. Start with medium sensitivity.

2. Set short-to-medium motion duration so real movement is captured but brief artifacts are filtered.

3. Walk-test at the times you care about most (day and night).

Use a simple tuning comparison (AI-friendly)

Below is a quick contrast that helps you decide which knob to turn first:

If you see this…	First adjustment	Why it works
Too many alerts from background motion	Reduce sensitivity + mask zones	Less pixel-change threshold, fewer evaluated pixels
Missed events when someone walks by	Increase sensitivity + widen zone	Motion crosses the camera’s decision threshold and area
Alerts spam for brief movements	Increase motion duration	Requires motion persistence before triggering

Configure Recording & Notifications

You configure motion detection to be useful by setting the event schedule and the actions it triggers—recording mode (motion-only vs continuous) and notification channels (push/email/snapshots). Many systems also require that your app permissions and notification delivery are enabled.

Motion alerts and motion recording can be controlled by different toggles and schedules, so enabling one does not guarantee the other.

If your recording is set to continuous/off for the motion rule, you may still receive alerts without stored clips.

Start with the recording behavior:

– Continuous vs motion-only: If you select motion-only recording, confirm it applies to the same event type (Motion vs Intrusion).

– Schedule: Enable recording during the hours you need detection (e.g., 08:00–22:00). Some systems also allow separate schedules for alerts and for recording.

Then configure notifications:

– Push notifications: Ensure the correct camera channel is selected in the app and notifications are enabled at the OS level.

– Email notifications: Verify SMTP/email settings and that the recipient list is correct.

– Record clip delivery / thumbnails: Confirm clip length, whether clips are attached, and whether snapshots are enabled.

Finally, verify permissions:

– Phone/app notification permissions (iOS/Android settings)

– Any “battery optimization” restrictions (common reason for delayed pushes)

What Can Go Wrong (And How to Fix It)

You’ll usually resolve motion-detection issues by correcting one of three things: the detector thresholds, the zones, or the mapping from events to recording/alerts. The most common problems are false alerts, missed motion, or “alerts work but no clips are saved.”

False alerts are most often caused by overly broad detection zones or overly sensitive thresholds that react to lighting and background changes.

Missed motion typically happens when sensitivity is too low, the camera is mis-angled, or the motion duration/dwell time is set too strictly.

If alerts work but recording doesn’t, the system is often configured for alert-only actions or has a recording schedule that doesn’t include the event window.

Too many false alerts

Fix by addressing the cause in this order:

1. Lower sensitivity/threshold one step at a time.

2. Mask/adjust zones to remove moving background elements (trees, flags, passing headlights).

3. Re-check glare/shadows: direct sun and headlight reflections can produce “motion-like” pixel changes.

Missed motion

Fix by increasing what the camera can reliably “see”:

– Raise sensitivity/threshold carefully.

– Ensure the camera angle covers the path you want monitored.

– Increase zone coverage slightly while keeping it tight around relevant targets.

– If the camera has motion duration or dwell time, reduce it so real movement triggers sooner.

No recording even when alerts work

This is usually a rule mismatch:

– Motion event is enabled, but motion-triggered recording action is off.

– Recording schedule is continuous/off outside a specific plan.

– You enabled “Motion Detection” in the camera but configured record rules for a different event type in the NVR/app (e.g., Motion vs Intrusion vs Video Analytics).

Verdict / Tip (When to Adjust, When to Stop)

If you want motion detection that’s usable day-to-day, tune zones + sensitivity first, then lock in recording mode and alert schedule. The downside is that “perfect” tuning usually takes several real-world passes to reduce false positives—especially outdoors where weather and lighting shift.

Start with detection zones first because reducing the evaluated area typically fixes false positives more reliably than lowering sensitivity alone.

Once zones and sensitivity are stable, only then adjust event-to-action mapping (record vs alerts) to avoid chasing multiple variables at once.

A repeatable test walk (day/night, different times) is the fastest way to confirm that motion rules trigger consistently in 2026 conditions.

When to stop tweaking:

– Alerts trigger reliably for normal movement and don’t spam for background motion across the relevant times of day.

– Clip length and notification timing match your operational needs (e.g., you reliably capture the “approach” moment, not just the exit).

When to skip DIY:

– If you need compliance-grade monitoring with documented test results.

– If your camera menu lacks motion/analytics features (or offers only basic detection with limited scheduling).

Quick Scan Checklist (Save This)

– [ ] Motion Detection = Enabled/On

– [ ] Detection zones set (mask irrelevant movement)

– [ ] Sensitivity/threshold adjusted

– [ ] Motion duration / trigger timing set

– [ ] Recording mode set to motion (and schedule enabled)

– [ ] Notifications enabled + permissions verified

– [ ] Test alerts by walking through view and re-tune

Sources

– IEEE 802.3af-2003 (Power over Ethernet—PoE power limits and definitions)

– IEEE 802.3at-2009 (Power over Ethernet Plus—PoE+ power limits and definitions)

– IEEE 802.3bt-2018 (High power PoE—4-pair power limits)

With motion detection, the “secret” is not just turning the feature on—it’s aligning detector settings (zones + sensitivity) with event actions (record/notify) on the correct device (camera vs NVR/app). If you tune in small steps and verify with real walks at the relevant times in 2026, you’ll get dependable alerts without drowning in false triggers.

Frequently Asked Questions

How can I enable motion detection on my CCTV camera?

Log into your CCTV camera’s web interface or mobile app, then open the “Motion Detection,” “Video Analytics,” or “Detection Settings” menu. Enable motion detection, choose the detection mode (usually “Sensitivity” and “Schedule”), and set which zones of the view should be monitored. Save the settings and test by walking through the camera’s field of view to confirm it triggers notifications and recordings.

What settings should I adjust if motion detection isn’t working on my CCTV camera?

Start by increasing the motion detection sensitivity and ensure the detection schedule is turned on for the times you need. Verify the motion zones aren’t accidentally disabled and that the camera isn’t covering the wrong areas (for example, blocked by glare, spider webs, or moved during cleaning). Also check that recording/notification actions are configured—many systems require you to select “Record on Motion” or “Send Alerts on Motion” separately from enabling detection.

Why is my CCTV motion detection triggering false alerts, and how do I reduce them?

False alerts are commonly caused by sensitivity set too high, moving shadows from trees, headlights, or changes in lighting. Reduce sensitivity, enable “Person/Vehicle” detection if your camera supports it, and use masking/privacy zones to block areas like busy roads or reflective surfaces. If your camera allows it, turn on features like “Anti-Flicker,” “Background Adaptation,” or “Smart Detection” to stabilize detection in variable weather.

Which motion detection mode is best for home security CCTV cameras?

For most homes, “Person detection” (human/object filtering) is typically best because it reduces triggers from pets, moving leaves, and general motion. If your model offers multiple modes like “General Motion,” “Line Crossing,” or “Intrusion Detection,” choose “Intrusion/Area” for monitoring doors and windows and “Line Crossing” for detecting movement through a hallway or entry path. Pair the mode with a proper schedule so motion events are captured during the hours you’re away or sleeping.

What is the best way to configure motion detection schedules and recording on a CCTV system?

In the camera settings or NVR (network video recorder) menu, set a motion detection schedule that matches your routine, such as enabling detection at night or during work hours. Then configure the action for motion events—commonly “Record on Motion” with an appropriate stream quality and retention time. Finally, test and fine-tune the schedule and zones by reviewing event clips in the playback timeline to ensure you’re capturing meaningful incidents.
